JAPAN HSR-LB Caged Ball LM Guides THK HSR85LB BLOCK HSR85LB2QZ+1240L-HSR85LB2QZC0M+1240LM-HSR85LB2C1+1240LP Linear Guides

THK HSR85LB Linear Motion Ball LM Guide Rail and Slide Block Linear bearing

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and ball cages and
endplates incorporated in the LM block allow the balls to circulate.
Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are
uniform in the four directions (radial, reverse-radial and lateral directions), enabling the LM Guide to be
used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the
rigidity in the four directions while maintaining a constant, low friction coefficient. With the low
sectional height and the high rigidity design of the LM block, SHS achieves highly accurate and stable
linear motion.
Product Description
Type
THK Linear Guideway Block
Model Number
HSR85LB
Material
Bearing Steel
Brand
THK
Condition
New Original
Features
High Speed, Long life
Block weight (kg/piece)
23
Linear Rail Weight(kg/m)
35.2
Linear Rail length
100mm-4000mm

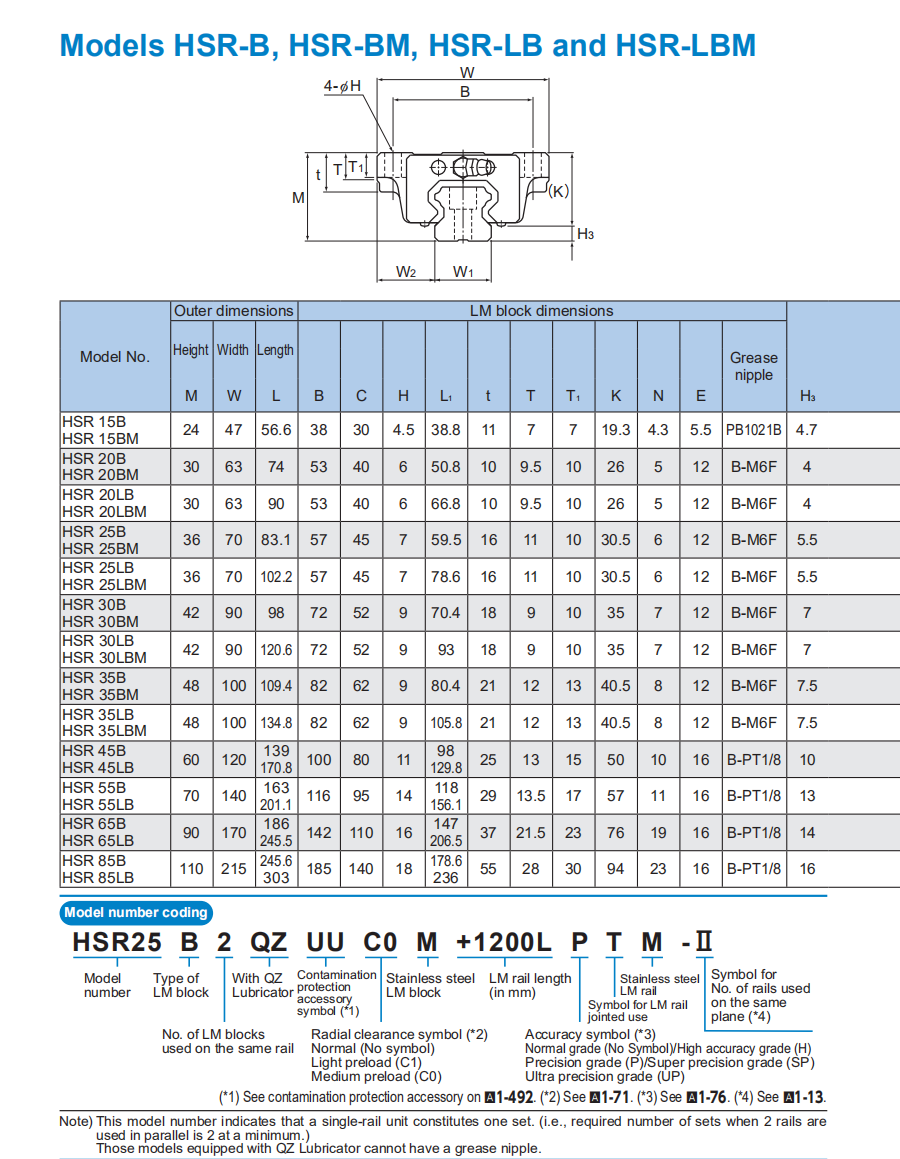

Dimensions
Height(M)
110mm
Width(W)
215mm
Height(L)
303mm
Dynamic load capacity (C KN)
282
Static load capacity(C0 KN)
412
FAQ

FAQ


FAQ

Q1：What's the delivery time?A1：In 2~3 days after receiving the payment. Q2 :What brand is this? A2: It's THK brand. Q3: Is this the THK original? A3: Yes, it is.
